Service Hints & Tips |
Document ID: LWIK-3XZLFC |
TP 560Z - 2030 LCD Inverter Card
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1030)
Keyboard Bezel (1040)
Keyboard Unit (1050)
LCD Assembly (1060)
LCD Front Cover (2010)
LCD Panel (2020)

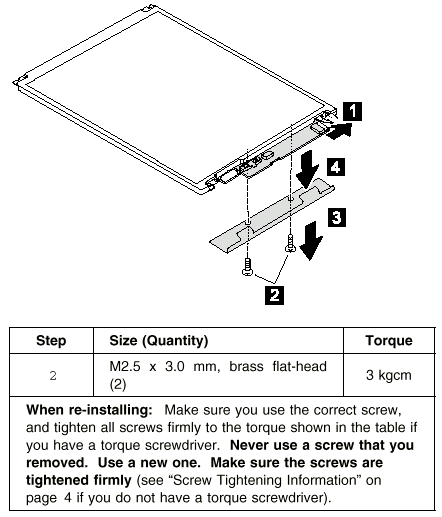

Warning: Be careful of high voltage on the cable. Connect the LCD connector firmly to the inverter card by lining them up straight:
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
04-09-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560Z | |
|
Machine Type |
2640, 2641 | |
|
Model |
Various | |
|
