Document ID: LWIK-3TLRDU |

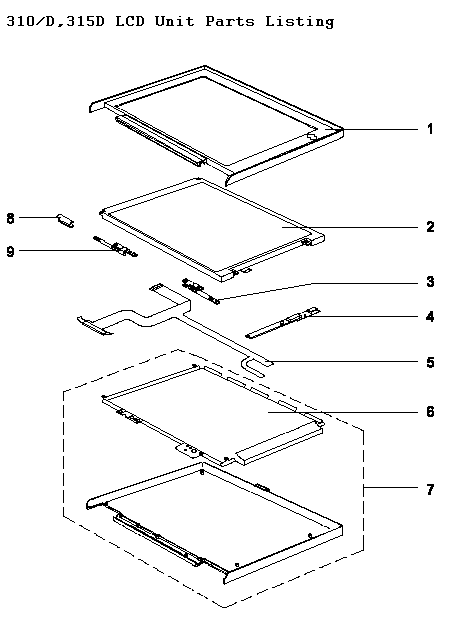

TP 310/D,315D - LCD unit FRU parts listing
Applicable to: World-Wide
|
Item # |
Description |
FRU # |
|
1 |
11.3" DSTN/TFT LCD bezel (with logo) |
11J8576 |
|
2 |
11.3" DSTN LCD |
11J8593 |
|
11.3" TFT LCD |
11J8594 | |
|
3 |
LCD hinge (R) |
11J8652 |
|
4 |
LCD inverter (DSTN/TFT) |
11J8589 |
|
5 |
11.3" DSTN LCD FPC cable (with LCD cable diaper) |
11J8577 |
|
11.3" TFT LCD FPC cable (with LCD cable diaper) |
11J8578 | |
|
6 | ||
|
7 |
11.3" DSTN LCD cover (with logo and LCD diaper and left hinge) |
11J8573 |
|
11.3" TFT LCD cover (with logo and LCD diaper and left hinge) |
11J8574 | |
|
8 | ||
|
9 |
LCD hinge (L) |
12J0527 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
16-04-98 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 310, ThinkPad 315 | |
|
Machine Type |
2600 | |
|
Model |
Various | |
|
