Service Hints & Tips |
Document ID: GSMH-3BTE68 |
TP 701C/CS - System board top view
Applicable to: World-Wide
Top View Locations:

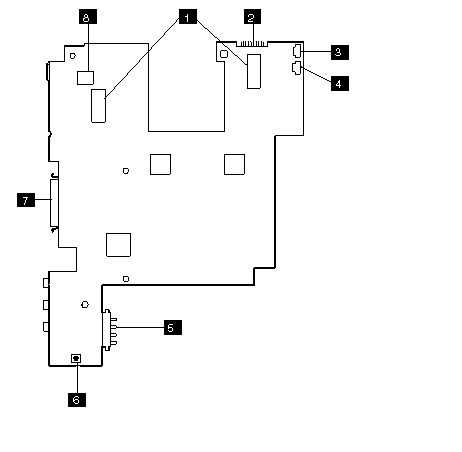

Top System Board (Top View):
|
1 |
Keyboard Connectors |
|
2 |
Inverter Card Connector |
|
3 |
Microphone Connector |
|
4 |
Speaker Connector |
|
5 |
Battery Pack Connector |
|
6 |
Lid Close Sensor |
|
7 |
Parallel/Diskette Drive Connector |
|
8 |
Trackpoint III Connector |

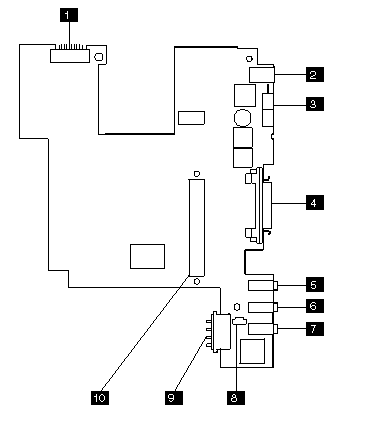

Top System Board (Bottom View):
|
1 |
Inverter Card Connector |
|
2 |
Power Jack |
|
3 |
Power Switch |
|
4 |
Parallel/Diskette Drive Connector |
|
5 |
Microphone-In Jack |
|
6 |
Line-In Jack |
|
7 |
Headphone-/Speaker-Out Jack |
|
8 |
Standby Battery Connector |
|
9 |
Battery Pack Connector |
|
10 |
Board-to-Board Connector |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
27-11-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 701 | |
|
Machine Type |
2630 | |
|
Model |
Various | |
|
