IBM PS/2 (Model 95 XP 486) - Technical Specifications

IBM Personal System/2 Model 95 XP 486

~~8595 processor complexes (188kb)~~

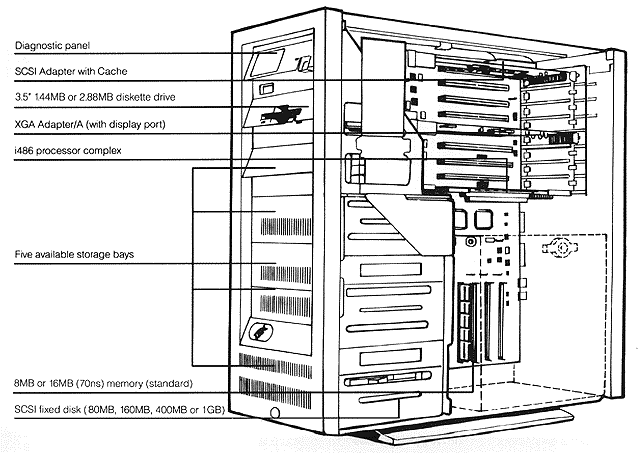

General information
Machine type: 8595
Announce date: October, 1990
List price: $12,640 (8595-0G9)

Excerpt from the original announcement letter;

"The Personal System/2 (R)(PS/2(R)) Model 95 XP 486 systems are a series of high performance, highly expandable floor-standing systems, based on IBM's Micro Channel (TM) architecture and 32-bit 80486 processors. With disk storage capability of up to 1.6 billion bytes, these systems are especially suited as LAN servers and multi-user hosts. The IBM Personal System/2 Model 95 XP 486 systems provide technical leadership and reflects IBM's responsiveness to satisfy customers requirements. Through a unique design of the system, the 80486 processor is contained on a removable processor complex. This expandable processor feature of the IBM Personal System/2 Model 95 XP 486 allows processor upgrade from the 25MHz to the more powerful 33MHz system. The ability to upgrade can extend the life of the system as customer requirements for enhanced processing performance grow."

System characteristics
Microprocessor: Intel 80486 SX, DX, or DX2 (on processor complex)
Clock speed: 20 MHz, 25 MHz or 33Mhz
Coprocessor: integrated on 486DX/DX2 models, optional i80487 on SX models
Type of BUS: 32-bit Micro Channel
Total number of expansion slots: 8 (tower case)
Ports: PS/2 keyboard, PS/2 mouse, 1 DMA serial, DMA parallel, XGA,

Memory
Min/Max on system board: 8/64MB
Type of memory:
RAM: DRAM (PS/2 72-pin SIMM, MUST be installed in a MATCHED PAIRS in 0Jx/0Kx and 0Mx models) 70ns parity checked
(8 sockets)
ROM: 128kb
Cache: 8kb L1, optional 256kb L2 (256kb L2 standard on 0Mx models)

Physical description
Power supply: 329w, 110-220VAC
Weight: 23.1kg (51 lbs) (one fixed disk installed)
Dimensions (HxWxD): (501 x 203.2 x 508mm)

Mass storage
Drive bays: 7 ( 1 x 3.5" HH, 6 x 5.25" HH (4 accessible))
Floppy Disk
Size: 3.5 inch half-height
Capacity: 1.44MB (2.88MB on 0Mx models)
Hard disk
Size: 3.5 inch half-height
Capacity: 160MB (0J9), 320MB (0JD, 0KD)
Access time: 16ms (160MB), 11.5ms (400MB)
Interface: SCSI (PS/2 bus master SCSI adapter/A with cache)

Display
Size:
Display type: Optional Analog CRT
Graphics modes supported: PS/2 XGA Display adapter/A (32-bit bus master)

1024x768, 16 colours (256 colours w. memory expansion)
640x480, 256 colours

Keyboard
Type: 101 key enhanced, 122 key host connect, 84 key space saving

Software
Operating system: IBM PC DOS Versions 3.3 and higher, OS/2 1.2 and higher, AIX PS/2

Configurations
Various memory, diskette drive, hard drive, monitor, and keyboard configurations including;
8595-0G9 - System Unit 486SX-20, 4MB, 160MB, 1.44, 101 keyboard
8595-0GF - System Unit 486SX-20, 4MB, 400MB, 1.44, 101 keyboard
8595-0H9 - System Unit 486SX-25, 8MB, 160MB, 1.44, 101 keyboard
8595-0HF - System Unit 486SX-25, 8MB, 400MB, 1.44, 101 keyboard
8595-0J9 - System Unit 486DX-25, 8MB, 160MB, 1.44, 101 keyboard
8595-0JD - System Unit 486DX-25, 8MB, 320MB, 1.44, 101 keyboard
8595-0JF - System Unit 486DX-25, 8MB, 400MB, 1.44, 101 keyboard
8595-0KD - System Unit 486DX-33, 8MB, 320MB, 1.44, 101 keyboard
8595-0KF - System Unit 486DX-33, 8MB, 400MB, 1.44, 101 keyboard
8595-0LF - System Unit 486DX-50, 8MB, 400MB, 2.88, 101 keyboard
8595-0MF - System Unit 486DX-50 w. 256kb L2, 16MB (ECC), 400MB, 2.88, 101 keyboard
8595-0MT - System Unit 486DX-50 w. 256kb L2, 16MB (ECC), 1.0GB, 2.88, 101 keyboard

Options

Description (#Feature Number)(Part Number)

SYSTEM BOARD MEMORY:

IBM Personal System/2 2MB Memory Module Kit-70ns (#0129) (6450902)
IBM Personal System/2 4MB Memory Module Kit-70ns (#0128) (6450128)
IBM Personal System/2 1MB Memory Module Kit-85ns (#5212) (6450603)
IBM Personal System/2 2MB Memory Module Kit-85ns (#5213) (6450604)
IBM Personal System/2 2MB Memory Module Kit-80ns (#5214) (6450608)
IBM Personal System/2 4MB Memory Module Kit-80ns (#3933) (87F9977)
IBM Personal System/2 4MB ECC Mem. Mod. Kit-70ns 1158 6451158
IBM Personal System/2 8MB ECC Mem. Mod. Kit-70ns 1159 6451159

MEMORY CACHE:

IBM Personal System/2 256KB Cache Option (#1098) (6451095)

DASD:

IBM Personal System/2 1.44MB 3.5" Slim High Diskette Drive (#1072) (6451072)
IBM Personal System/2 60MB SCSI Fixed Disk Drive (#1049) (6451049)
IBM Personal System/2 80MB SCSI Fixed Disk Drive (#1045) (6451045)
IBM Personal System/2 120MB SCSI Fixed Disk Drive (#1050) (6451050)
IBM Personal System/2 160MB SCSI Fixed Disk Drive (#1046) (6451046)
IBM Personal System/2 320MB SCSI Fixed Disk Drive (#1108) (6451108)
IBM Personal System/2 Micro Channel SCSI Adapter (#1005) (6451109)
IBM Personal System/2 Micro Channel SCSI Adapter with Cache (#1018) (6451110)
IBM Personal System/2 Micro Channel SCSI Adapter External Terminator (#1039) (6451039)
IBM Personal System/2 Fixed Disk Drive Kit D (#1119) (6451120)
IBM Personal System/2 External Enclosure for SCSI Devices 3511-003
IBM Personal System/2 CD-ROM Drive (#1113) (6451113)
IBM Personal System/2 External CD-ROM Drive 3510-001
IBM Personal System/2 5.25-inch Slim High Diskette Drive (#1066) (6451066)
IBM Personal System/2 5.25-inch Diskette Adapter/A (#1007)(6451007)
IBM Personal System/2 4869-001 5.25-inch 360KB External Diskette Drive
IBM Personal System/2 4869-002 5.25-inch 1.2MB External Diskette Drive
IBM Optical Disk Drive 3363-A11
IBM Optical Disk Drive 3363-B01

COMMUNICATIONS:

IBM Personal System/2 Adapter/A for ETHERNET Networks (#1091)(6451091)
IBM Personal System/2 Dual Async Adapter/A (#1014)(6451013)
The IBM 3270 Connection (#2000)(74F3465)
IBM S/370 Channel Emulator/A (#3205) (1674899)
IBM System 36/38 Work Station Emulation Adapter (#6279)(69X6279)
IBM PC Network Baseband Adapter/A (#1223)(1501223)
IBM PC Network Adapter II/A (#1222)(1501222)
IBM PC Network Adapter II/A - Frequency 2 (#5647)(96X5647)
IBM PC Network Adapter II/A - Frequency 3 (#5648)(96X5648)
IBM Token-Ring Network Adapter/A (#4790)(69X8138)
IBM Token-Ring Network Adapter/A - Remote Program Load (#8881) (25F8887)
IBM Token-Ring Network 16/4 Adapter/A (#1133) (16F1133)-FRU level #53F7748
IBM Personal System/2 300/1200 Internal Modem/A (#0349)(6450349)
IBM Personal System/2 300/1200/2400 Internal Modem/A (#1755) (94X1755)
IBM Personal System/2 Multi-protocol Adapter/A (#3043)(6451003)
IBM Realtime Interface Co-Processor Multiport/2 (#6263 or #6247) (09F1897 or 16F1820) *
IBM Realtime Interface Co-Processor Multiport/2 8 Port RS-232 Interface Board (#6265) (09F1952)
IBM Realtime Interface Co-Processor Multiport/2 8 Port RS-422A Interface Board (#6326) (15F8852)
IBM Realtime Interface Co-Processor Multiport/2 6 Port RS-232C Synchronous Interface Board (#6327) (15F8861)
IBM Realtime Interface Co-Processor Multiport/2 4 Port RS-232 Interface Board (#6267) (09F1955)
IBM Realtime Interface Co-Processor Multiport/2 RS-232/RS-422 Interface Board (#6266) ((09F1958)
IBM Realtime Interface Co-Processor Portmaster Adapter/A (#6360, 6364 or 6368) (53F2601, 53F2604 or 53F2607) *
IBM Realtime Interface Co-Processor Portmaster 8 Port RS-232 Interface Board/A (#6362) (53F2610)
IBM Realtime Interface Co-Processor Portmaster 8 Port RS-422 Interface Board/A (#6363) (53F2613)
IBM Personal System/2 Model 95 XP 486 supports a maximum of five of these adapters.
IBM Realtime Interface Co-Processor Surge Protection Adapter (#6361) (53F2625)
IBM X.25 Interface Co-Processor/2 (#6401) (16F1858)
IBM Display Station Emulation Adapter/A (#7743)(92X0743)
Store Controller Kit (#6500) (83X8187)
Second Store Loop Adapter/A (#6701) (83X7575)
IBM Personal System/2 FaxConcentrator Adapter/A (#2530) (94X2530)

* Due to physical limitations of these adapters, they cannot be installed in slot #8 of the PS/2 Model 95 XP 486 systems. The corrective service diskette (CSD) # UL79292 is required to support Realtime Interface Co-Processor OS/2 Support, Version 1.03 (Part Number 33F7229, Program Number 5662-281) on 8595-0KD system.

PROCESSOR UPGRADE:

IBM Personal System/2 486/33 Processor Upgrade Option (#5264) (6451094)
The processor upgrade installation is provided by IBM or an IBM Authorized Remarketer.

DISPLAYS AND DISPLAY ADAPTERS:

IBM Personal System/2 XGA Display Adapter/A (#5887) (75X5887)
IBM Personal System/2 M-Motion Video Adapter (#3487) (34F3087) **, $
IBM Personal System/2 Video Memory Expansion Option (#4007) (75X5889)
IBM Personal System/2 Image Adapter/A (#4324)(07F4400)
IBM Personal System/2 Image Adapter/A 1MB (#0072) (44F9914)
IBM Personal System/2 Image Adapter/A 3MB (#0073) (44F9919)
IBM Personal System/2 Image Adapter/A 3MB 6091 (#0074) (44F9921)
IBM Personal System/2 Image Adapter/A Printer/Scanner Option (#1632) (07F4402) (Requires #4324 or #0072 or #0073 or #0074)
IBM Personal System/2 Image Adapter/A Memory Expansion Kit (#3231) (07F4406) (Requires #1632)
IBM Personal System/2 8503 Monochrome Display **
IBM Monochrome Display 8506 (Requires #4324 or #0072 or #0073)
IBM Monochrome Display 8507
IBM Monochrome Display 8508 (Requires #4324 or #0072 or #0073)
IBM Personal System/2 Colour Display 8512 **
IBM Personal System/2 Colour Display 8513 **
IBM Personal System/2 Colour Display 8514
IBM Personal System/2 Colour Display 8515
IBM 6091 Colour Display (Requires #0074)

** - Supports VGA or lower resolution modes only.
$ - The IBM Personal System/ M-Motion Video Adapter requires the M-Motion Adapter Software Diskette version 1.01 or higher.
Plus many more IBM and 3rd party adapter cards...
Note: Options may no longer be available from IBM.
