Service Hints & Tips |
Document ID: MNOK-42RS2U |
Aptiva - 2176 Removals and replacements - System board
Applicable to: World-Wide

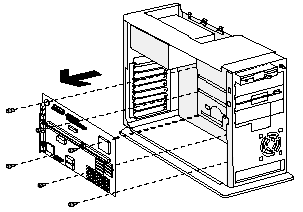

2090ůSystem Board
Adapter cards (2035) if applicable -
.
Riser card (2045) - .
Disconnect any cables necessary for removal.
Memory (SIMM) (2050) if applicable - .
Memory (DIMM) (2051) is applicable - .
Cache memory (2055) if applicable.
Type 1 system board - .
Type 2 system board - .
Processor (2060).
Type 1 system board - .
Type 2 system board - .
Notes:
1. Be certain to reinstall the processor, SIMMs, and cache memory in the new system board if applicable.
2. When reinstalling a new system board, push the board to the rear and place it over the front locating pin prior to installing the screws.
3. Run the Setup Utility after changing the system board.
|
