Aptiva - 2134/2176 Removals and replacements

30.283 bytes

Service Hints & Tips

Document ID: MNOK-42RQXW

Aptiva - 2134/2176 Removals and replacements - Memory (DIMM)

Applicable to: World-Wide

2051ùMemory (DIMM)

Attention: Memory modules are sensitive to static discharge. See "Handling ESD-Sensitive Parts" on page 4-38 of the HMM.

For 2134:

Adapter cards (1035) if applicable - .

For 2176:

Adapter cards (2035) if applicable - .
Riser card (if DIMM is located behind riser card) - .

Push out on the side clamps to release the module.

Pull the module up and out to remove.

Note: Run the Setup Utility after adding or removing memory.

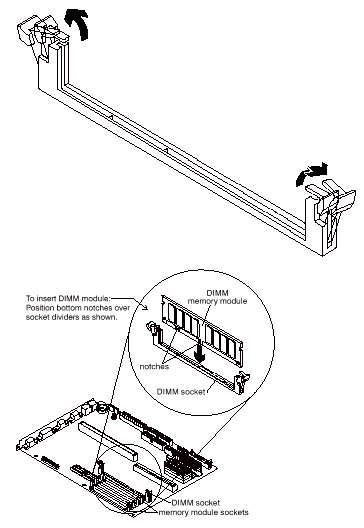

Figure 4-31. Memory DIMM
