Parts Information |
Document ID: GSMH-3ENFR2 |
TP 365X - FRU parts listing
Applicable to: World-Wide

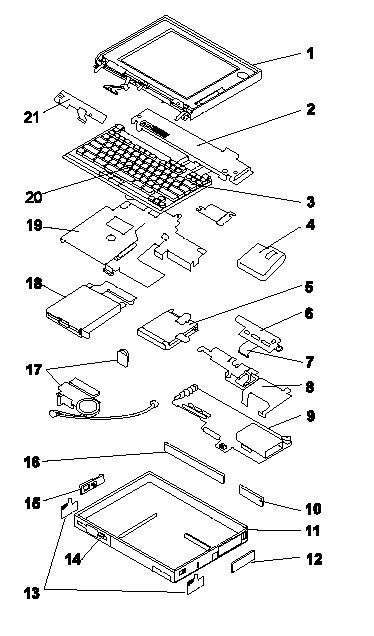

Model 365X - Diskette Drive:
|
Index |
System Unit |
Part Number |
|
1 |
LCD Panel |
Click here - |
|
2 |
Top Cover |
69H7919 |
|
3 |
Keyboard |
Click here - |
|
4 |
Battery Pack |
41H7438 |
|
5 |
Hard Disk Drive (720 MB) |
85G8371 |
|
Order either of the below 810MB hard drives | ||
|
Hard Disk Drive (810 MB) |
07H0392 | |
|
Hard Disk Drive (810 MB) |
39H2220 | |
|
Hard Disk Drive (1.08 GB) |
39H2221 | |
|
Hard Disk Drive (1.35 GB) |
73H6419 | |
|
NS Bracket Kit (HDD) |
74H0238 | |
|
6 |
Keyboard Card Assembly |
69H7913 |
|
7 |
Miscellaneous Cable Kit: |
74H0574 |
|
8 |
CPU Card Assembly (P100) |
69H7912 |
|
CPU Card Assembly (P120) |
74H0237 | |
|
CPU Card Assembly (P133) |
82H8162 | |
|
9 |
System Board Card Assembly with Audio |
83H7117 |
|
10 |
Port Replicator Cap |
69H7906 |
|
11 |
Base Cover Assembly |
69H7903 |
|
12 |
PCMCIA Card Slot Cover |
69H7904 |
|
13 |
Keyboard Latch (L/R) |
82H8177 |
|
14 |
FDD Bezel |
83H5275 |
|
15 |
Power Switch - See Misc. Base Parts below | |
|
16 |
Rear I/O Connector Cover |
69H7905 |
|
17 |
Speaker/Volume/Cable Assembly |
74H0573 |
|
18 |
Diskette Drive (2 mode) |
69H7926 |
|
Diskette Drive (3 mode; Japan) |
74H0232 | |
|
19 |
Cosmetic Shield |
82H8172 |
|
20 |
TrackPoint III Cap set | |
|
21 |
LED Indicator Card |
69H7914 |
|
NS |
Real-Time Clock Backup Battery |
46H4132 |
|
NS |
Misc. Base Parts: Cover Support Bracket, Screw Caps, Power Switch Knob, Power Switch Bracket, EMI Bracket, EMI Top Plate, System Insulator, Base Insulator, Base Right Clip |
69H7916 |
|
NS |
Misc. Logic Parts: CPU Spacer, CPU Heat Sink I/O Connector Bracket, Port Replicator Bracket |
69H7915 |
|
NS |
Foot (Tilt) |
74H0571 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
26-02-97 | |
|
Last Updated |
01-03-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
