Parts Information |
Document ID: LWIK-3TTGL6 |
TP 380/D,385/D - System unit FRU parts listing
Applicable to: World-Wide
Parts Listing 380/385 (2635)
Models 380/380D/385/385D
|

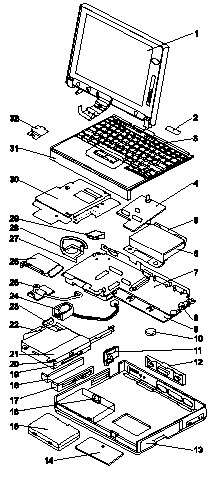

Index |
System Unit |
FRU # |
|
1 |
LCD Assembly | |
|
2 |
Name Label Kit |
05K4462 |
|
3 |
Keyboard Assembly (see Keyboard) | |
|
4 |
Subcard |
73H9928 |
|
5 |
HDD Bracket |
73H9936 |
|
6 |
Hard Disk Drive (1.08 GB) |
39H222173H641973H6427 |
|
7 |
System Board |
83H6524 |
|
8 |
Audio Jack Holder (see Misc. Parts) | |
|
9 |
Lower Shield Case |
73H9927 |
|
10 |
Backup Battery |
46H4132 |
|
11 |
Power Switch Knob (see Misc. Parts) | |
|
12 |
I/O Door |
05K4345 |
|
13 |
Base Cover Assembly |
73H9919 |
|
14 |
DIMM Cover Assembly |
73H9921 |
|
15 |
Battery Pack (Li-ion) |
73H9951 |
|
|
Battery Pack (NiMH) |
73H9952 |
|
16 |
Battery Pack Latch Kit |
11J8315 |
|
17 |
FDD Bezel |
73H9932 |
|
18 |
Blank Bezel |
73H9934 |
|
18 |
FDD |
11J8338 |
|
20 |
8X CD-ROM |
73H9933 |
|
21 |
Support Structure (see Misc. Parts) | |
|
22 |
CD/FDD Connector (CD-Model) |
73H9935 |
|
|
FDD Connector (non CD-Model) |
83H6527 |
|
23 |
Drive Bracket |
73H9930 |
|
24 |
Speaker Assembly |
73H9938 |
|
25 |
Microphone Assembly |
73H9939 |
|
26 |
PC Card Slot |
83H6523 |
|
27 |
Heat Sink (for fan) |
83H6525 |
|
28 |
Fan |
83H6526 |
|
29 |
Air Duct (see Misc. Parts) | |
|
30 |
Upper Shield Case |
73H9929 |
|
31 |
Keyboard Bezel |
73H9950 |
|
32 |
LCD GND Holder, Lower (see Misc. Parts) | |
|
|
AC Adapter (35W) |
12J1442 |
|
Cable Holder (Tape) |
11J8376 | |
|
Thermal Rubber |
73H9924 | |
|
TrackPoint III Cap |
|
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
23-04-98 | |
|
Last Updated |
03-03-99 | |
|
Revision Date |
13-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380, ThinkPad 380D, ThinkPad 385D | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
TypeModel |
| |
|
