TP 380E/ED,385E/ED - System unit FRU parts listing

91.417 bytes

Parts Information

Document ID: LWIK-3TTGX5

TP 380E/ED,385E/ED - System unit FRU parts listing

Applicable to: World-Wide

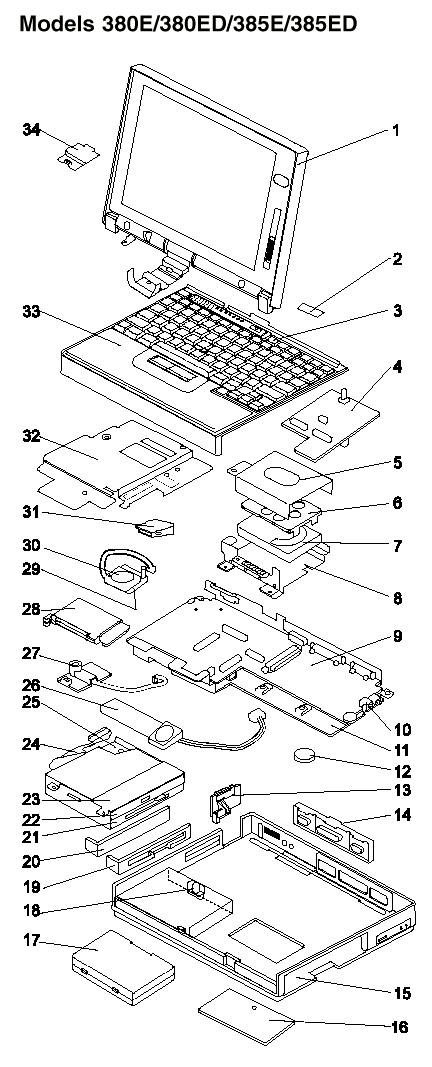

Index

System Unit

FRU

1

LCD Assembly

2

Name Label Kit

05K4462

3

Keyboard Assembly (see Keyboard Section)

4

Subcard

73H9928

5

HDD Bracket, upper

12J0142

6

HDD Spacer
Note: HDD spacer is for slim-type HDD (12.5mm).
Order either of the below hard disk drives
that match the FRU number of the drive being replaced.

12J0143

7

Hard Disk Drive (2.1 GB)

73H6427

7

Hard Disk Drive (2.1 GB)

12J4569

7

Hard Disk Drive (3 GB)

73H6430

7

Hard Disk Drive (3 GB)

83H7086

7

Hard Disk Drive (3 GB)

10L6074

7

Hard Disk Drive (5.1 GB)

83H7084

8

HDD Bracket, lower

12J0141

9

System Board
For 380E/385E, 150MHz-MMX
For 380ED/385ED, 166MHz-MMX

05K3115
12J0146

10

Audio Jack Holder (see Misc. Parts)

11

Lower Shield Case

12J0140

12

Backup Battery

46H4132

13

Power Switch Knob (see Misc. Parts)

14

I/O Door

05K4345

15

Base Cover Assembly

73H9919

16

DIMM Cover Assembly

73H9921

17

Battery Pack (Li-ion)

73H9951

Battery Pack (NiMH)

73H9952

18

Battery Pack Latch Kit

11J8315

19

FDD Bezel

73H9932

20

Blank Bezel

73H9934

21

FDD
Note: Order either of the below CD-ROM drives
that match the FRU number of the drive being replaced.

11J8338

22

8-20x CD-ROM

12J0115

22

8-20x CD-ROM

02K0491

23

Support Structure (see Misc. Parts)

24

CD/FDD Connector (CD-Model)

73H9935

FDD Connector (non CD-Model)

83H6527

25

Drive Bracket

12J0144

26

Box Speaker Assembly

02K4311

27

Microphone Assembly

73H9939

28

PC Card Slot (380E/385E)

83H6523

PC Card Slot (380ED/385ED)

05K4495

29

Heat Sink (for fan)

83H6525

30

Fan

83H6526

31

Air Duct (see Misc. Parts)

32

Upper Shield Case

73H9929

33

Keyboard Bezel

73H9950

34

LCD GND Holder, Lower (see Misc. Parts)

AC Adapter (35W)
2-pin
3-pin

12J1442 12J1444

Cable Holder (Tape)

11J8376

Thermal Rubber

73H9924

TrackPoint III Cap

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

23-04-98

Last Updated

04-03-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 380E, ThinkPad 380ED, ThinkPad 385E, ThinkPad 385ED

Machine Type

2635

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index	System Unit	FRU
1	LCD Assembly
2	Name Label Kit	05K4462
3	Keyboard Assembly (see Keyboard Section)
4	Subcard	73H9928
5	HDD Bracket, upper	12J0142
6	HDD Spacer Note: HDD spacer is for slim-type HDD (12.5mm). Order either of the below hard disk drives that match the FRU number of the drive being replaced.	12J0143
7	Hard Disk Drive (2.1 GB)	73H6427
7	Hard Disk Drive (2.1 GB)	12J4569
7	Hard Disk Drive (3 GB)	73H6430
7	Hard Disk Drive (3 GB)	83H7086
7	Hard Disk Drive (3 GB)	10L6074
7	Hard Disk Drive (5.1 GB)	83H7084
8	HDD Bracket, lower	12J0141
9	System Board For 380E/385E, 150MHz-MMX For 380ED/385ED, 166MHz-MMX	05K3115 12J0146
10	Audio Jack Holder (see Misc. Parts)
11	Lower Shield Case	12J0140
12	Backup Battery	46H4132
13	Power Switch Knob (see Misc. Parts)
14	I/O Door	05K4345
15	Base Cover Assembly	73H9919
16	DIMM Cover Assembly	73H9921
17	Battery Pack (Li-ion)	73H9951
	Battery Pack (NiMH)	73H9952
18	Battery Pack Latch Kit	11J8315
19	FDD Bezel	73H9932
20	Blank Bezel	73H9934
21	FDD Note: Order either of the below CD-ROM drives that match the FRU number of the drive being replaced.	11J8338
22	8-20x CD-ROM	12J0115
22	8-20x CD-ROM	02K0491
23	Support Structure (see Misc. Parts)
24	CD/FDD Connector (CD-Model)	73H9935
	FDD Connector (non CD-Model)	83H6527
25	Drive Bracket	12J0144
26	Box Speaker Assembly	02K4311
27	Microphone Assembly	73H9939
28	PC Card Slot (380E/385E)	83H6523
	PC Card Slot (380ED/385ED)	05K4495
29	Heat Sink (for fan)	83H6525
30	Fan	83H6526
31	Air Duct (see Misc. Parts)
32	Upper Shield Case	73H9929
33	Keyboard Bezel	73H9950
34	LCD GND Holder, Lower (see Misc. Parts)

	AC Adapter (35W) 2-pin 3-pin	12J1442 12J1444
	Cable Holder (Tape)	11J8376
	Thermal Rubber	73H9924
	TrackPoint III Cap

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	23-04-98
	Last Updated	04-03-99
	Revision Date	03-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 380E, ThinkPad 380ED, ThinkPad 385E, ThinkPad 385ED
	Machine Type	2635
	Model	Various
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
