TP 770/E/ED/X/Z - FRU Parts List

81.854 bytes

Parts Information

Document ID: PFAN-3TRTM7

TP 770/E/ED/X/Z - FRU Parts List

Applicable to: World-Wide

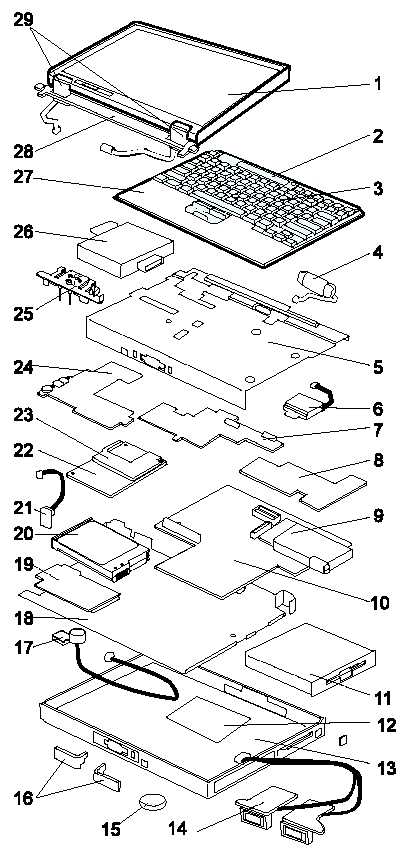

Parts Listing 770/E/ED/X/Z (9548, 9549)

Index

Part 770/E/ED/X/Z

FRU

1

LCD Assembly (see LCD FRU)

2

Indicator Panel

-For 770

12J0448

-For 770E/770ED/770X

05K9364

3

Keyboard (see Keyboard Unit)

4

Standby Battery

12J0428

5

Upper Shield Case

-For 770

05K4468

-For 770E/770ED

05K5373

-For 770X

05K5177

6

Fan

-For 770

05K4469

-For 770E/770ED

05K4941

-For 770X

05K5179

7

Video Card

-For 770

12J0410

-For 770E/770ED

10L0889

-For 770X 14.1" model

10L0908

-For 770X 13.7"

10L0911

-For 770Z 14.1" model

10L0908

-For 770Z 13.7" model

10L0911

8

Modem Card

10L1572

-For Austria

10L1572

-For U.S/Japan

12J0412

-For 770, Korea

10L0934

-For 770X

05K3179

-For 770X, Korea

10L0934

9

PC Card Slots Assembly

05K4475

10

System Board

-For 770

10L1559

-For 770E/770ED

10L1766

-For 770X

10L0906

-For 770Z

10L1259

11

FDD Assembly

12J0425

CD-ROM Drive (x 24)

02K0515

CD-ROM Drive (x 20)

05K9012

DVD Drive (17 mm)

05K9014

DVD Drive (12.5 mm)

05K8885

12

DIMM Cover

12J0421

-For 770X

05K5555

-For 770Z

05K6132

13

Base Cover

-For 770 14.1" model

05K5308

-For 770 14.1" model, Korea

05K7025

-For 770 13.3" model

05K5309

-For 770 13.3" model, Korea

05K7026

-For 770 APS

05K5310

-For 770ED

05K5345

-For 770ED, Austria

05K5528

-For 770ED, PRCa

05K5529

-For 770E

05K5346

-For 770X

05K5742

-For 770X, Korea

05K5743

-For 770X, PRC

05K5963

-For 770X, Austria

05K5965

-For 770Z

05K6148

-For 770Z, PRC

05K6149

-For 770Z, Australia

05K6150

-For 770Z, Korea

05K6151

14

Stereo Speaker Assembly

-For 14.1" model

12J0415

-For 13.3" model

12J2001

15

Backup Battery

12J0453

16

Eject Lever (See Mechanical Group)

17

Microphone Assembly (with holder)

05K4476

18

Lower Shield Case

12J0407

-For 770X/770Z

05K5178

19

DVD and Enhanced Video Adapter

12J0411

20

Battery Pack (Lithium-Ion)

02K7019

21

LED Card

05K4460

22

CPU Card for 770

-Pentium MMX 200 MHz /L2 512

12J0409

-Pentium MMX 233 MHz /L2 512

12J0408

CPU Card for 770E/770ED

-Pentium II 266 MHz /L2 512

10L1721

CPU Card for 770X

-Pentium II 300 MHz /L2 512

10L0907

CPU Card for 770Z

-Pentium II 366 MHz /L2 512

10L1260

23

Heat Sink

-For 770

05K7039

-For 770E/770ED

05K7041

-For 770X

05K5176

24

DC-DC Card

-For 770

12J0413

-For 770E/770ED

10L0890

-For 770X

10L1022

25

Eject Holder Asm. (See Mech. Group)

26

Hard Disk Drive

-3.2 GB

12J0427

-4.0 GB

12J0426

-5.1 GB

12J0449

-8.1 GB

02K0514

-14.1 GB

02K0525

27

Keyboard Bezel

-For 770 14.1" model

05K7051

-For 770 14.1" model, Korea

05K7053

-For 770 13.3" model

05K7056

-For 770 13.3" model, Korea

05K7058

-For 770E/770ED

05K7061

-For 770X model

05K5181

-For 770X Korea

05K5924

-For 770Z

05K6152

-For 770Z Korea

05K6153

28

Center Cover

12J0422

29

Hinge Cap (Left and Right)

12J0423

Spacer for Mic.

05K6043

AC Adapter (56 W)

2-pin

02K6497

3-pin

02K7007

3-pin

02K7011

Slim AC Adapter for 770Z

For Japan

02K6554

For Japan

02K6556

3-pin

02K6555

3-pin

02K6557

-For 770X

02K7007

AC Adapter for Japan

11J8974

Enhanced Video Cable

85G1897

FDD Cable

12J0432

Flap Bus Connector

05K4471

Foot

05K5549

HDD Door

05K4473

I/O Door (Left)

12J0419

I/O Door (Right)

12J0420

Cable, for RFID (770Z)

05K2847

PC Card Lid

05K4470

TrackPoint Cap

Carrying Case for 770E/770ED

05K4843

USB/Parallel Wrap Cable

05K2580

Security Screws (3) & Coin Screw (1)

05K4477

Logic Miscellaneous Parts
Includes the following:
-M5 Nut Bus Connector
-Screw Cap

12J0406

Miscellaneous Parts for Base Cover
Includes the following:
-Blank Cover Adv. MM Adapter
-Blank Lid for Telephone Jack (RJ11)
-EMI Finger-LCD Icon
-Keyboard Spacer
-Keyboard Washer
-Power Switch
-Screw Cap
-Spacer for Non modem Model

12J0429

Mechanical Group
-For 14.1" model
-For 13.3" model
-For 13.7" model
Includes the following:
-Eject Lever (Left and Right)
-Eject Holder Assembly

12J0403
12J0404
12J0403

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

21-04-98

Last Updated

14-04-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 770, ThinkPad 770E/ED, ThinkPad 770X, ThinkPad 770Z

Machine Type

9548, 9549

Model

various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes
