Parts Information |
Document ID: GKEY-3JLBER |
TP 765D/L - FRU parts listing
Applicable to: World-Wide

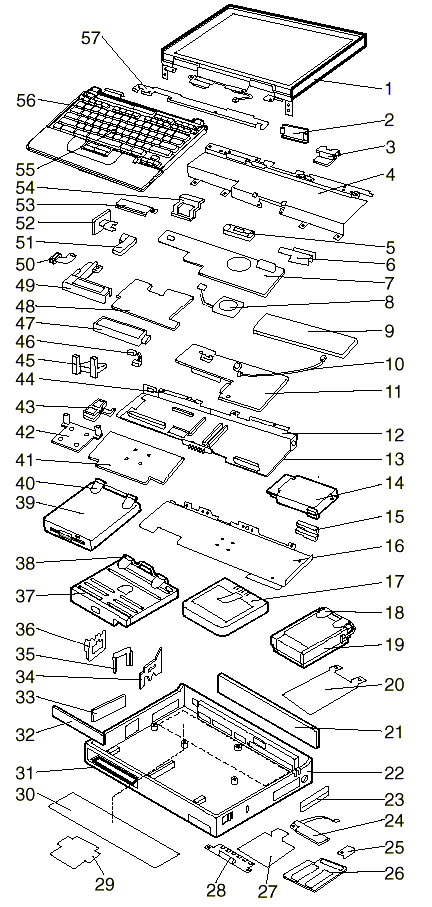

Parts Listing 765D (9546), 765L (9547)
|
Index |
Part 765 D/L |
FRU |
|
1 |
LCD Assembly (765D/765L, 13.3 XGA) |
11J8133 |
|
2 |
IR Cover (See Misc. Parts) | |
|
3 |
Cable Protector |
11J8187 |
|
4 |
Upper Shield Case |
11J8122 |
|
5 |
Fan Silencer |
46H5495 |
|
6 |
External FDD Connector |
11J8137 |
|
7 |
Video Card (765D) |
11J8119 |
|
|
Simple Video Card (765L) |
11J8183 |
|
8 |
Fan |
46H5762 |
|
|
Screw for Fan |
46H5766 |
|
9 |
Inverter Card (765D/765L, 13.3 XGA) |
11J8120 |
|
|
Inverter Card (765L, 13.3 XGA, NEC) |
05K3100 |
|
|
Inverter Holder |
11J8121 |
|
|
Inverter Shield |
11J8182 |
|
|
Inverter Shield, Upper |
97H3423 |
|
10 |
Mic. Connection Cable |
29H9210 |
|
11 |
Audio Card (765D) |
29H9205 |
|
|
ESS Card (765L) |
97H3388 |
|
12 |
Rear Shield Case (right) |
97H3425 |
|
13 |
System Board |
05K3178 |
|
14 |
PC Card Slots Assembly |
97H3429 |
|
15 |
PCMCIA Eject Button |
46H6028 |
|
16 |
Lower Shield Case |
11J8115 |
|
17 |
Battery Pack (Li-ion) |
29H9232 |
|
18 |
HDD Removable Strap |
29H9236 |
|
19 |
Hard Disk Drive (3 GB) |
45H8791 |
|
20 |
EMI Sheet |
46H5497 |
|
21 |
Rear Connector Door |
46H5764 |
|
22 |
Base Cover |
11J8113 |
|
23 |
PC Card Door |
29H9238 |
|
24 |
Front IR Assembly |
29H9215 |
|
25 |
Stopper (See Misc. Parts) | |
|
26 |
DIMM Adapter Card (8 MB) |
46H5768 |
|
27 |
EMI Plate |
97H3427 |
|
28 |
Metal Plate (See Misc. Parts) | |
|
29 |
Shield Plate-L |
11J8181 |
|
30 |
Thermal Rubber Sheet |
11J8180 |
|
31 |
Lower Spacer |
29H9194 |
|
32 |
FDD Blank Bezel |
29H9239 |
|
|
FDD Bezel |
29H9196 |
|
33 |
Option Cover |
29H9193 |
|
34 |
AV Cover |
29H9189 |
|
35 |
Modem Cover Lock |
39H7028 |
|
36 |
Modem Cover |
39H7030 29H9187 |
|
37 |
CD-ROM Drive (8X, 765D) |
97H3419 |
|
38 |
CD-ROM Removable Strap (765D) |
29H9237 |
|
39 |
Diskette Drive (3-mode, 765L) |
29H9230 |
|
40 |
Diskette Drive Removable Strap |
29H9237 |
|
41 |
CPU Card (166 MHz, Pentium-MMX) |
82H8875 |
|
42 |
Heat Sink |
11J8116 |
|
43 |
See Misc. Parts | |
|
44 |
Rear Shield Case (left) |
97H3424 |
|
45 |
Heat Sink-Sub |
11J8117 |
|
46 |
Volume Connection Cable |
29H9211 |
|
47 |
Internal DAA Assembly (765D) |
12J1571 |
|
48 |
DC/DC Card |
46H5750 |
|
49 |
Modem Holder (See Misc. Parts) | |
|
50 |
Video Cable (765D) |
29H9206 |
|
51 |
Power Switch Actuator |
29H9209 |
|
52 |
Power Switch Button |
29H9192 |
|
53 |
Rear IR Assembly |
29H9214 |
|
54 |
Air Duct |
46H5763 |
|
55 |
TrackPoint Cap |
|
|
56 |
Keyboard Unit (See Keyboard Unit Section) |
|
|
57 |
Top Cover |
11J8123 |
|
DIMM Card Holder |
46H5765 | |
|
AC Adapter (56W) |
12J2583 | |
|
Keyboard Misc. Parts |
39H7105 | |
|
Misc. Parts, 765D |
29H9235 | |
|
Model Name Label |
46H6034 | |
|
Security Plate |
05K4732 |
|
