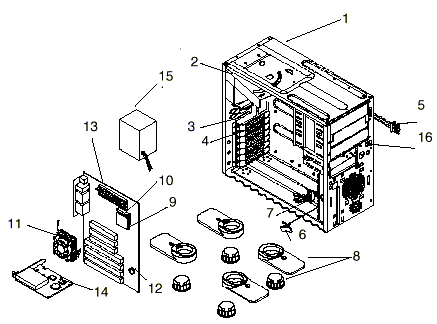

Aptiva - 2137 System unit (interior) service parts
Applicable to: World-Wide
|
Asm-Index |
FRU Number |
Description |
|
2-1 |
02K2332 |
Assembly Lower Case (with Power Supply Frame, Driver Frame, Bracket Port, w/o Housing Stands) |
|
2-2 |
02K2333 |
Power Supply Frame |
|
2-NS |
02K2334 |
Screw for Power Supply Frame |
|
2-3 |
01K4200 |
Bracket Port |
|
2-4 |
02K2334 |
Screw for Bracket Port |
|
2-5 |
02K2335 |
Assembly Wire LED |
|
2-6 |
01K4213 |
Mounting Purse Lock |
|
2-7 |
01K4192 |
EMI Core |
|
2-8 |
02K2337 |
Housing Stand |
|
2-9 |
12J6890 |
System Board V58XA-1,1N-600 |
|
2-9 |
02K2551 |
System Board V58XA-2CR, 220 |
|
2-9 |
10L6595 |
System Board V58XA-2, 220 |
|
2-9 |
10L6653 |
System Board V58XA-2, 220 (support K6-300,Vpll 3.3V processor) |
|
2-9 |
10L6659 |
System Board V58XA-2, 220 (support K6-300,Vpll 3.3V processor, w/o ROC mark) |
|
2-NS |
02K2334 |
Screw for System Board |
|
2-10 |
03K0345 |
Intel Pentium 200 MHz Processor |
|
2-10 |
03K0346 |
Intel Pentium 166 MHz MMX Processor |
|
2-10 |
03K0347 |
Intel Pentium 200 MHz MMX Processor |
|
2-10 |
02K2271 |
Intel Pentium 233 MHz MMX Processor |
|
2-10 |
02K2273 |
IBM 6x86MX-PR166 Processor |
|
2-10 |
02K2275 |
AMD K6 166MHz Processor |
|
2-10 |
02K2276 |
AMD K6 200MHz Processor |
|
2-10 |
02K2277 |
AMD K6 233MHz Processor |
|
2-10 |
12J6886 |
AMD K6 266MHz Processor |
|
2-10 |
10L6632 |
AMD K6 300MHz Processor (Vpll 3.3V) |
|
2-NS |
02K2345 |
Flash ROM |
|
2-11 |
02K2323 |
Processor Fan Sink |
|
2-11 |
02K2269 |
Processor Fan Sink (for K6-233/266) |
|
2-12 |
01K4278 |
Backup Battery (CR2032) |
|
2-13 |
02K2287 |
DIMM 8MB |
|
2-13 |
02K2288 |
DIMM 16MB |
|
2-13 |
02K2289 |
DIMM 32MB |
|
2-14 |
Modem Card, click here - | |
|
2-15 |
02K2297 |
Power Supply 200W (API) |
|
2-15 |
02K2562 |
Power Supply 200W for IDATX-2 Housing |
|
2-15 |
02K2298 |
Power Supply 200W, (for JP) |
|
2-16 |
12J6877 |
Power Switch and Cable |
|
2-NS |
01K4259 |
Screw for Power Switch |
|
2-17 |
02K2627 |
Assembly I/O Port Bracket(bracket, label, hex screws) for 02K2332 Lower Case |
|
2-17 |
02K2626 |
Assembly I/O Port Bracket(bracket, label, hex screws) for 02K2605 Lower Case |
|
