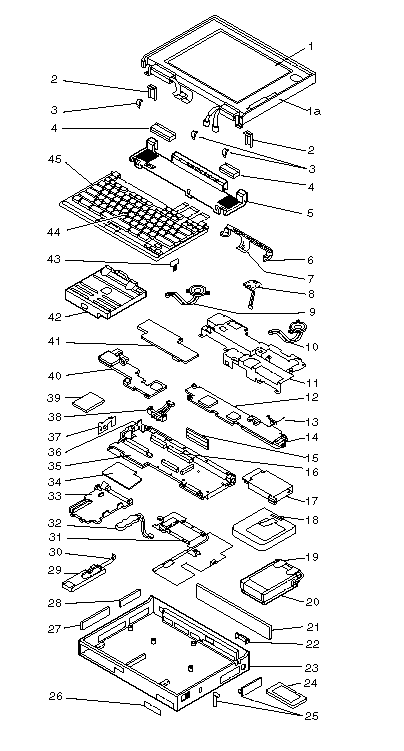

TP 755CD/CDV - FRU parts listing
Applicable to: World-Wide
Parts Listing:
System Unit (755CD/755CDV):
|
Index |
Component |
FRU # |
|
1 |
LCD Assembly (TFT) |
85G1489 |
|
LCD Assembly front (755CDV) |
85G1633 | |
|
LCD Assembly rear cover (755CDV) |
85G1630 | |
|
2 |
Hinge Bracket, Right, Left |
85G1894 |
|
3 |
Screw, Rubber Lid |
85G1509 |
|
4 |
Hinge, Lid, Right/Left |
85G1930 |
|
5 |
Top Cover (755CD) |
85G1884 |
|
Top Cover (755CDV) |
85G7476 | |
|
6 |
Stand-off, Indicator |
85G1929 |
|
7 |
Status Indicator |
85G1924 |
|
8 |
Backup Battery |
85G1501 |
|
9 |
Speaker Assembly, Left |
85G1931 |
|
10 |
Speaker Assembly, Right |
85G1932 |
|
11 |
Shield Case, Upper |
85G1887 |
|
12 |
Video Card Assembly |
85G1885 |
|
13 |
IR Assembly, Rear |
85G1936 |
|
Junction FPC, IR Rear |
85G1926 | |
|
14 |
S-Video Card |
85G1934 |
|
15 |
Interposer Card |
85G1886 |
|
16 |
Lower Shield |
85G1497 |
|
17 |
PCMCIA Slot Assembly |
85G1062 |
|
18 |
Battery Pack (Ni-MH) |
85G1510 |
|
19 |
HDD Removal Strap |
66G5122 |
|
20 |
540MB Hard Disk Drive |
84G4319 |
|
810MB Hard Disk Drive |
85G0961 | |
|
21 |
Rear Connector Cover |
85G1888 |
|
22 |
IR Lens, Rear |
85G1925 |
|
23 |
Base Cover Assembly (755CD) |
85G1881 |
|
For Japan |
85G1883 | |
|
Base Cover Assembly (755CDV) |
85G1107 | |
|
For Japan |
85G1108 | |
|
24 |
PCMCIA Device (See options) |
|
|
25 |
PCMCIA Cover |
85G1511 |
|
26 |
Name Label |
66G9228 |
|
27 |
Cover, Option Bay |
85G1892 |
|
28 |
AV Door |
84G6551 |
|
29 |
IR Lens, front |
84G6548 |
|
30 |
IR Assembly, front |
84G6549 |
|
31 |
Processor Card (33/100 MHz) |
85G1495 |
|
32 |
Standby Battery |
85G1039 |
|
33 |
Base Plate |
84G6563 |
|
34 |
Memory Card |
84G6561 |
|
35 |
System Board (755CD, 755CDV) |
85G1141 |
|
36 |
Power Switch Button |
85G1928 |
|
37 |
AV Panel |
85G1927 |
|
38 |
Battery Terminal (755CD) |
84G6556 |
|
Battery Terminal (755CDV) |
85G8568 | |
|
39 |
IC DRAM Card (See options) | |
|
40 |
DSP Card Assembly |
85G8505 |
|
41 |
DC/DC Card (755CD) with DX4 CPU |
85G1500 |
|
DC/DC Card (755CD) with Pentium CPU |
85G8551 | |
|
DC/DC Card (755CDV) |
85G8551 | |
|
42 |
CD-ROM Drive |
85G1914 |
|
43 |
Keyboard Security Plate |
85G1895 |
|
44 |
TrackPoint III Cap | |
|
45 |
Keyboard Assembly (See Keyboards) |
See below |
|
Attachment Holder | ||
|
Connection Cable, Microphone |
85G8495 | |
|
Internal Microphone Cable |
84G6559 | |
|
Modem Connector Assembly, U.S. |
85G1504 | |
|
Modem Connector Assembly, EMEA |
85G1505 | |
|
Modem Connector Assembly, blank |
85G6564 | |
|
Wall Plug |
85G2367 | |
|
Head Phone |
85G1529 | |
|
PCMCIA Cartridge |
84G1303 | |
|
PCMCIA RF Cartridge |
84G1304 | |
|
Interface Cable, System - Keyboard |
84G2531 | |
|
Interface Cable, keyboard - Keypad |
84G2532 | |
|
Cable, Mini-DIN to Mini-DIN |
84G6474 | |
|
Keyboard Spacer |
85G1937 | |
|
Shield Case, Rear |
85G1915 | |
|
Conversion Cable - Game Port |
85G1896 | |
|
Conversion Cable - Video |
85G1897 | |
|
Rear FASCIA Panel |
85G1919 | |
|
Diskette Drive (4-mode) |
66G5060 | |
|
Diskette Drive (3-mode) |
84G2269 | |
|
Diskette Drive Removal Strap |
66G5123 | |
|
Bezel, Diskette Drive |
85G1889 | |
|
Foot (right, left) |
84G4326 | |
|
AC Adapter (35W, 3 pin) |
85G4952 | |
|
For Japan (2 pin) |
85G6669 | |
|
DC Plug (4 pin, 2 pin) |
85G6664 | |
|
Extension DC Cable (755CDV) |
85G7466 | |
|
DC Plug (4 pin, 2 pin) |
85G6664 | |
|
EMI Spring Plate |
85G1066 | |
|
DC Adapter Cable (755CV) |
85G7466 | |
|
Strap (755CDV) |
85G1104 | |
|
Computer Stand (755CDV) |
85G1635 | |
|
Remote Control (755CDV) Notes: |
Keyboard:
|
Arabic |
84G6508 |
|
Belgian |
84G6506 |
|
Canadian French |
84G6514 |
|
Danish |
84G6505 |
|
Dutch |
84G6503 |
|
French |
84G6499 |
|
German (Black) |
84G6497 |
|
Greek |
84G6512 |
|
Hebrew |
84G6509 |
|
Italian |
84G6501 |
|
Japanese |
84G6515 |
|
Latin American |
84G6513 |
|
Norwegian |
84G6507 |
|
Portuguese |
84G6510 |
|
Spanish |
84G6504 |
|
Swedish |
84G6502 |
|
Swiss/French |
84G6500 |
|
Swiss/German |
84G6498 |
|
Turkish |
84G6511 |
|
U.K. English |
84G6496 |
|
U.S. English |
84G6495 |
|
