Service Hints & Tips |
Document ID: MNOK-3ZXRH3 |
Aptiva - 2136 Removals and replacements - Bay 5 (3.5-In. Internal Bay)
Applicable to: World-Wide
If another 3.5-inch drive need to be install, please follow these steps.
- Attach a 3.5-inch drive to the lower frame which has mentioned in bay-4.
- Secure it with the appropriate screws.

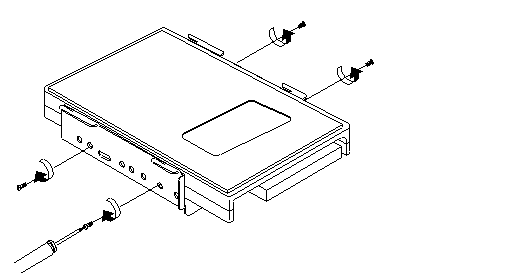

Figure 4- 11 Install another 3.5-inch drive
See "Bay 4 (3.5-In. FDD Bay)"
mentioned above for reattaching the drives back to the system.
|
