Parts Information |
Document ID: LWIK-3XNMFW |

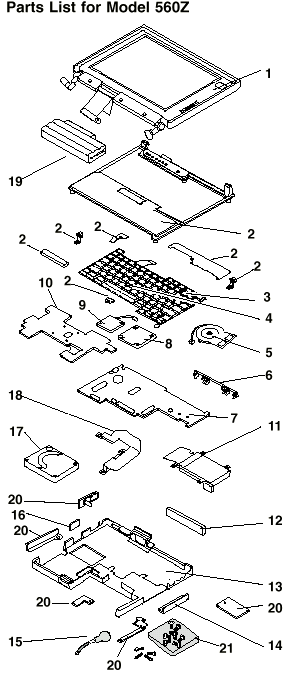

TP 560Z - FRU parts listing
Applicable to: World-Wide
|
Ref No. |
FRU Name |
FRU No. |
|
1 |
LCD Assembly (See LCD Assembly) |
< |
|
2 |
Keyboard Bezel Kit includes: |
05K5424 |
|
|
Keyboard Bezel Assembly |
|
|
|
Hinge Support Bracket (Left & Right) |
|
|
|
Keyboard Bracket (3 Pcs) |
|
|
|
Gasket |
|
|
3 |
Keyboard ( See Keyboards below) |
|
|
4 |
TrackPoint Cap | |
|
5 |
Speaker |
05K5421 |
|
6 |
EMI Bracket I/O |
46H4032 |
|
7 |
System Board (32MB) 10L1145 |
|
|
|
System Board (64MB) |
10L1164 |
|
8 |
CPU Mini Cartridge (233 MHz) |
10L1023 |
|
|
CPU Mini Cartridge (300 MHz) |
10L1150 |
|
9 |
Fan |
05K5420 |
|
10 |
Heat Sink |
05K5418 |
|
11 |
Card-Bus Slot |
05K5422 |
|
12 |
Rubber Cap I/O |
46H4151 |
|
13 |
Base Cover |
05K5417 |
|
14 |
PC Card Cover |
12J1691 |
|
15 |
Backup Battery |
12J1695 |
|
16 |
FDD Connector Cover |
12J1692 |
|
17 |
Hard Disk Drive Assembly |
|
|
|
4.0GB HDD Assembly (9.5 mm) with Spacer |
22L0024 |
|
|
4.0GB HDD Assembly (12.5 mm) |
83H7085 |
|
|
6.4GB HDD Assembly (12.5 mm) |
83H7103 |
|
18 |
HDD Flat Cable |
05K2759 |
|
19 |
Battery Pack |
46H4144 |
|
20 |
Mechanical Parts |
05K5423 |
|
|
HDD Lid |
|
|
|
Power Switch Knob |
|
|
|
DIMM Socket Lid |
|
|
|
Backup Battery Compartment Lid |
|
|
|
Bracket Battery Guide |
|
|
21 |
Screw Kit |
05K5419 |
|
|
Screw M2-L4 -MC/Heat Sink(10) |
4761072 |
|
|
Screw M2-L8 -Fan(10) |
4761170 |
|
|
Screw M2-L2(10) |
05K5571 |
|
|
Screw M2.5-L2(10) |
05K5572 |
|
|
Screw M2.5-L11(10) |
05K5575 |
|
NS |
Other (Not Shown) |
|
|
|
External FDD (2-mode) |
10H4056 |
|
|
External FDD (3-mode) |
39F2086 |
|
|
External FDD Cable |
12J1711 |
|
|
AC Adapter (56W) |
|
|
|
2-pin |
11J8974 |
|
|
3-pin |
11J8956 |
|
|
Screw Cap, Front |
66G5046 |
|
|
Screw Cap, Bottom |
11J8919 |
Keyboards:
|
Nomenclature |
FRU No. |
|
U.S. English |
02K4785 |
|
Japanese |
02K4786 |
|
U.K. English |
02K4787 |
|
Canadian French |
02K4788 |
|
German |
02K4789 |
|
French |
02K4790 |
|
Dutch |
02K4791 |
|
Swedish/Finnish |
02K4792 |
|
Norwegian |
02K4793 |
|
Danish |
02K4794 |
|
Italian |
02K4795 |
|
Spanish |
02K4796 |
|
Swiss |
02K4797 |
|
Portuguese |
02K4798 |
|
Latin Spanish |
02K4799 |
|
Korean |
02K4800 |
|
Belgian |
02K4801 |
|
Turkish |
02K4802 |
|
Taiwan |
02K4803 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
24-08-98 | |
|
Last Updated |
03-03-99 | |
|
Revision Date |
03-03-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560Z | |
|
Machine Type |
2640, 2641 | |
|
Model |
Various | |
|
