Service Hints & Tips |
Document ID: DETR-3ZPHMX |
Aptiva - 2156 Removals and replacements - Front bezel
Applicable to: World-Wide

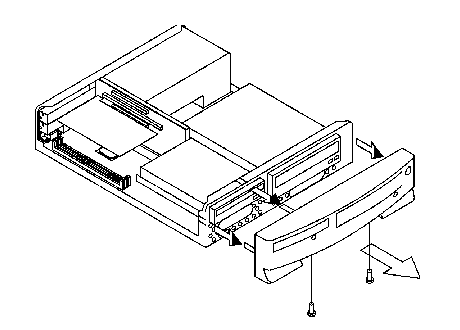

To remove the front bezel, you must remove the top cover first.
1. Remove the two screws from the bottom of the cover.
2. Uncouple the three undercuts with the system unit.
3. Pull the front panel from the system unit.
|
