Service Hints & Tips |
Document ID: MNOK-42QNB5 |
Aptiva - 2134/2144 Removals and replacements - Hard disk drives
Applicable to: World-Wide
1030 - Hard Disk Drive
- Left drive support bracket (1010) -
- Right drive support bracket (1015) -
Note:
Refer to " Model/Monitor Configuration and FRU Part Numbers" and install the correct software.

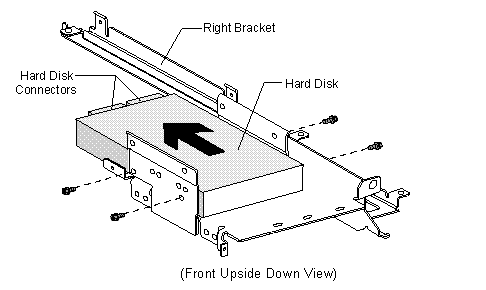

Figure 1-7. Hard Disk Drive - Bay 3
(Front Upside Down View)

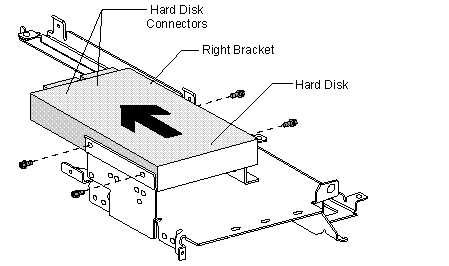

Figure 1-8. Hard Disk Drive - Bay 4
|
