Service Hints & Tips |
Document ID: MNOK-42RK8N |
Aptiva - 2168 (Service Level H/I) Memory (SIMM)
Applicable to: World-Wide
2050 - Memory (SIMM)
Warning:
Memory cards are sensitive to static discharge. See "Handling ESD-Sensitive Parts" -
.
- Adapter cards (2035) if applicable - .
- Riser card (if SIMMs located behind riser card) - .
- Push out on the side clamps to release the module.
- Pull the module up and out to remove.
Note:
Run the Setup Utility after adding or removing memory.

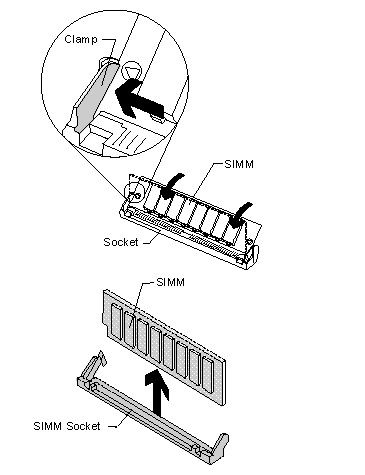

Figure 1-33. Memory SIMM
|
