TP 380XD,385XD - FRU parts listing
Applicable to: World-Wide

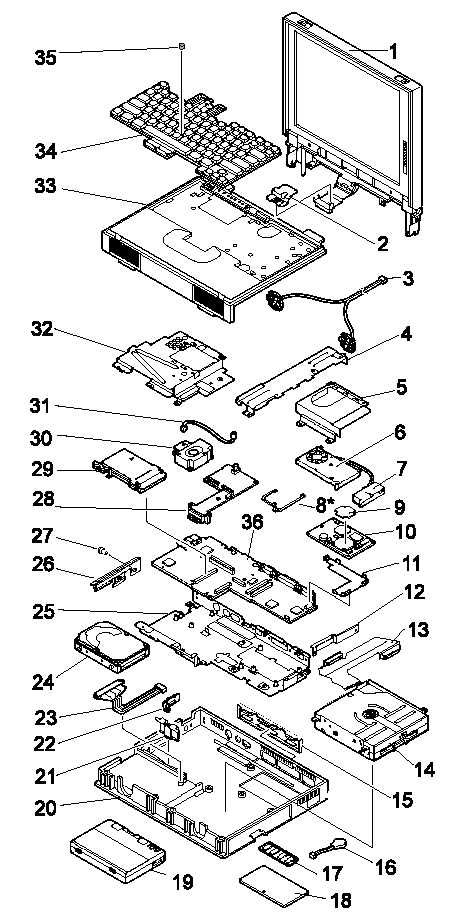

Parts Listing 380XD/385XD (2635)
Note: FRU number 8 is available only on the 2635-Dxx/Exx/Fxx.
|
Index |
Description |
FRU # |
|
1 |
LCD Assembly (12.1 HPA) | |
|
2 |
LCD Cable Holder (included in Ref.No.15 on pages 112, 114 and 116) | |
|
3 |
Stereo Speaker Assembly |
02K4330 |
|
4 |
Support Plate (included in Base Misc. Parts Kit on page 109) | |
|
5 |
Right Shield Case | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
05K4749 | |
|
For 2635-Dxx/Exx/Fxx |
05K5237 | |
|
6 |
Fan |
05K4746 |
|
7 |
Air Duct (included in Base Misc. Parts Ki) | |
|
8 |
MMO Spacer for 2635-Dxx/Exx/Fxx |
05K5234 |
|
9 |
Thermal Rubber | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
05K4748 | |
|
For 2635-Dxx/Exx/Fxx |
05K5235 | |
|
10 |
CPU Card (233 MHz) | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
12J0408 | |
|
For 2635-Dxx/Exx/Fxx |
10L0888 | |
|
CPU Card (266 MHz) | ||
|
For 2635-8xx/9xx/Axx/Bxx |
10L0885 | |
|
For 2635-Dxx/Exx/Fxx |
10L0887 | |
|
11 |
Heat Sink |
05K4747 |
|
12 |
Connector Bracket | |
|
13 |
CD/Diskette Drive Connector Assembly (with-CD model) | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
05K2637 | |
|
For 2635-Dxx/Exx/Fxx |
05K2657 | |
|
13 |
Diskette Drive Connector Assembly (non-CD model) |
83H6527 |
|
14 |
CD-ROM/Diskette Drive Assembly ( see page 110 ) | |
|
15 |
Connector Cover |
05K4744 |
|
16 |
Backup Battery |
02K6498 |
|
17 |
SO-DIMM | |
|
18 |
Memory Slot Cover |
05K4758 |
|
19 |
Battery Pack | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
73H9951 | |
|
For 2635-Dxx/Exx/Fxx |
02K6509 | |
|
20 |
Base Cover Assembly |
05K4743 |
|
21 |
Battery Pack Lock Assembly |
05K4775 |
|
22 |
Power Switch Knob (included in Base Misc. Parts Kit) | |
|
23 |
HDD Cable Assembly |
05K2636 |
|
24 |
Hard Disk Drive | |
|
25 |
Lower Shield Case |
05K4745 |
|
26 |
HDD Lid |
05K4753 |
|
27 |
HDD Lid Coin Screw |
05K4754 |
|
28 |
DC/DC Card | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
05K3195 | |
|
For 2635-Dxx/Exx/Fxx |
10L0930 | |
|
29 |
PC Card Slot |
05K4862 |
|
30 |
Box Speaker (including Power Switch) |
02K4328 |
|
31 |
Microphone Assembly |
02K4329 |
|
32 |
Upper Shield Case |
05K4750 |
|
33 |
Keyboard Bezel |
05K4755 |
|
34 |
Keyboard | |
|
35 |
TrackPoint III Cap | |
|
36 |
System Board | |
|
For 2635-8xx/LEU/9xx/Axx/Bxx |
05K3196 | |
|
For 2635-Dxx/Exx/Fxx |
10L0929 | |
|
Base Misc. Parts Kit |
05K4774 | |
|
including: Air Duct (Ref.No.2) | ||
|
Power Switch Knob(Ref.No.21) | ||
|
Support Plate (Ref.No.4.) | ||
|
Logo for LG Korea |
11J8373 | |
|
Cable Holding Tape |
11J8376 |
|
