Parts Information |
Document ID: RJJR-3NH97L |
TP 560X - FRU parts listing
Applicable to: World-Wide
Note for the TFT LCD:
There are two TFT LCD panels: TFT 1 and TFT2.
Both panels are interchangeable, so you can use
either panel when replacing (see page 77 in the HMM
for more information).
|

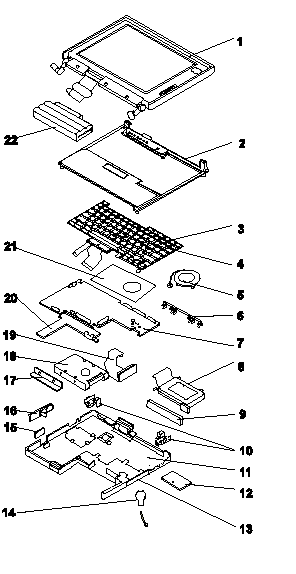

Index |
System Unit |
FRU # |
|
1 |
LCD Assembly (12.1 DSTN) |
12J1699 |
|
LCD Assembly (12.1 TFT 1) |
12J1704 | |
|
LCD Assembly (12.1 TFT 2) |
12J1706 | |
|
2 |
Frame |
12J1697 |
|
3 |
Keyboard(see keyboard section) |
|
|
4 |
TrackPoint III Cap | |
|
5 |
Speaker |
46H4133 |
|
6 |
EMI Bracket I/O |
05K4643 |
|
7 |
System Board (200 MHz) |
12J1693 |
|
System Board (233 MHz) |
12J1694 | |
|
8 |
Card-Bus Slot |
12J1696 |
|
9 |
Rubber Cap I/O |
46H4151 |
|
10 |
EMI Spring |
46H4145 |
|
11 |
Base Cover |
12J1690 |
|
12 |
DIMM Cover |
46H4131 |
|
13 |
PC Card Cover |
12J1691 |
|
14 |
Backup Battery |
12J1695 |
|
15 |
FDD Connector Cover |
12J1692 |
|
16 |
Power Switch |
46H4138 |
|
17 |
HDD Bracket |
46H4137 |
|
18 |
Hard Disk Drive (2.1 GB) |
83H7080 |
|
Hard Disk Drive (4.0 GB) |
83H7085 | |
|
19 |
HDD Flexible Cable |
05K2615 |
|
20 |
DC/DC Card |
05K3112 |
|
21 |
Keyboard Sheet |
46H4150 |
|
22 |
Battery Pack |
46H4144 |
|
External FDD (2-mode) |
10H4056 | |
|
External FDD (3-mode) |
39F2086 | |
|
External FDD Cable |
39F2077 | |
|
AC Adapter (56W) | ||
|
2-pin |
11J8974 | |
|
3-pin |
11J8956 | |
|
Screw Cap |
66G5046 | |
|
Screw Cap, rear |
11J8919 |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
04-11-97 | |
|
Last Updated |
30-03-99 | |
|
Revision Date |
03-03-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560X | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
