Service Hints & Tips |
Document ID: MNOK-42QN7J |
Aptiva - 2134/2144 Removals and replacements - 3.5 Inch and 5.25 Inch drive bays
Applicable to: World-Wide
1020 - 3.5-In. Bays
Left drive support bracket (1010) -
Figure 1-5. 3.5-In. Bay 1
1025 - 5.25-In. Bay
- Left drive support bracket (1010) -
- CD-ROM drive or other drives
- Right drive support bracket (1015) -
When removing a drive, reinstall the new FRU in the same bay. Any of these devices may be installed in any 5.25-in. bay:
- CD-ROM drive (if Multimedia model)
- 5.25-in. diskette drive
- Dual 3.5-in. and 5.25-in. diskette drive

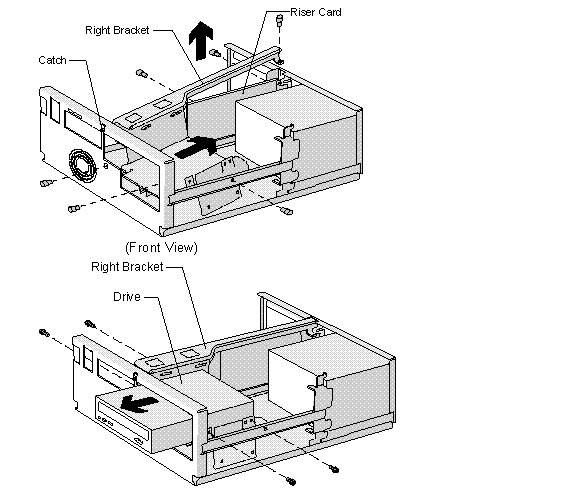

Figure 1-6. 5.25-In. Bay
