syscalls Command

Purpose

Provides system call tracing and counting for specific processes and the system.

Syntax

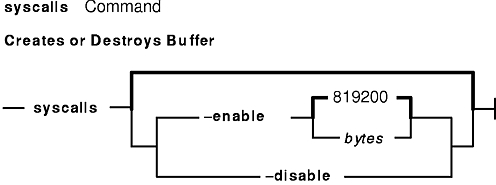

To Create or Destroy Buffer:

syscalls [ [ -enable  bytes ]| -disable  ]

To Print System Call Counts:

syscalls -c

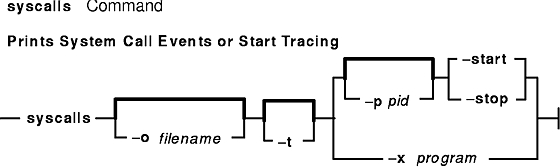

To Print System Call Events or Start Tracing:

syscalls [ -o  filename ] [ -t  ] { [ [ -p pid ] -start | -stop  ] | -x  program }

Description

The syscalls (system call tracing) command, captures system call entry and exit events by individual processes or all processes on the system. The syscalls command can also maintain counts for all system calls made over long periods of time.

Notes:

1. System call events are logged in a shared-memory trace buffer. The same shared memory identifier may be used by other processes resulting in a collision. In such circumstances, the -enable flag needs to be issued.
2. The syscalls command does not use the trace daemon.
3. The system crashes if ipcrm -M sharedmemid is run after syscalls has been run. Run stem -shmkill instead of running ipcrm -M to remove the shared memory segment.

Flags

-c

Prints a summary of system call counts for all processes. The counters are not reset.

-disable

Destroys the system call buffer and disables system call tracing and counting.

-enable bytes

Creates the system call trace buffer. If this flag is not used, the syscalls command creates a buffer of the default size of 819,200 bytes. Use this flag if events are not being logged in the buffer. This is the result of a collision with another process using the same shared memory buffer ID.

-o filename

Prints output to filename rather than standard out.

-p pid

When used with the -start flag, only events for processes with this pid will be logged in the syscalls buffer. When used with the -stop option, syscalls filters the data in the buffer and only prints output for this pid.

-start

Resets the trace buffer pointer. This option enables the buffer if it does not exist and resets the counters to zero.

-stop

Stops the logging of system call events and prints the contents of the buffer.

-t

Prints the time associated with each system call event alongside the event.

-x program

Runs program while logging events for only that process. The buffer is enabled if needed.

Security

Access Control: You must be root or a member of the perf group to run this command.

Examples

1. To collect system calls for a particular program, enter:

   syscalls -x /bin/ps

   Output similar to the following appears:

      PID    TTY  TIME CMD
    19841  pts/4  0:01 /bin/ksh
    23715  pts/4  0:00 syscalls -x /bin/ps
    30720  pts/4  0:00 /bin/ps
    34972  pts/4  0:01 ksh
      PID   System Call
    30720           .kfork  Exit , return=0  Call preceded tracing.
    30720          .getpid  () = 30720
    30720       .sigaction  (2, 2ff7eba8, 2ff7ebbc) = 0
    30720       .sigaction  (3, 2ff7eba8, 2ff7ebcc) = 0
    30720     .sigprocmask  (0, 2ff7ebac, 2ff7ebdc) = 0
    30720       .sigaction  (20, 2ff7eba8, 2ff7ebe8) = 0
    30720           .kfork  () = 31233
    30720        .kwaitpid  (2ff7ebfc, 31233, 0, 0) = 31233
    30720       .sigaction  (2, 2ff7ebbc, 0) = 0
    30720       .sigaction  (3, 2ff7ebcc, 0) = 0
    30720       .sigaction  (20, 2ff7ebe8, 0) = 0
    30720     .sigprocmask  (2, 2ff7ebdc, 0) = 0
    30720         .getuidx  (4) = 0
    30720         .getuidx  (2) = 0
    30720         .getuidx  (1) = 0
    30720         .getgidx  (4) = 0
    30720         .getgidx  (2) = 0
    30720         .getgidx  (1) = 0
    30720           ._load  NoFormat, (0x2ff7ef54, 0x0, 0x0, 0x2ff7ff58) = 537227760
    30720            .sbrk  (65536) = 537235456
    30720          .getpid  () = 30720

2. To produce a count of system calls made by all processes, enter:

   syscalls -start

   followed by entering:

   syscalls -c

   Output similar to the following appears:

    System Call Counts for all processes
          5041      .lseek
          4950      .kreadv
           744      .sigaction
           366      .close
           338      .sbrk
           190      .kioctl
           120      .getuidx
           116      .kwritev
           108      .kfcntl
           105      .getgidx
            95      .kwaitpid
            92      .gettimer
            92      .select
            70      .getpid
            70      .sigprocmask
            52      .execve
            51      ._exit
            51      .kfork
            35      .open
            35      ._load
            33      .pipe
            33      .incinterval
            28      .sigreturn
            27      .access
            16      .brk
            15      .times
            15      .privcheck
            15      .gettimerid
            10      .statx
             9      .STEM_R10string
             4      .sysconfig
             3      .P2counters_accum
             3      .shmget
             3      .shmat
             2      .setpgid
             2      .shmctl
             2      .kioctl
             1      .Patch_Demux_Addr_2
             1      .Patch_Demux_Addr_High
             1      .STEM_R3R4string
             1      .shmdt
             1      .Stem_KEX_copy_demux_entry
             1      .STEM_R3R4string
             1      .Patch_Demux_Addr_1
             1      .pause
             1      .accessx

Files

/usr/bin/syscalls

Contains the syscalls command.

Related Information

The stem command.
