Aptiva - 2144 (Service Level H/I) System board
Applicable to: World-Wide
1090 - System Board
- Adapter cards (1035) -
.
- Left drive support bracket (1010) - .
- Riser card (1045) - .
- Disconnect any cables necessary for removal.
- Memory (SIMMs) (1050) - .
- Video memory modules (1056) if applicable.
Type 1 system board-
Type 2 system board-
- Cache memory modules (1055) if applicable.
Type 1 system board -
Type 2 system board -
- Processor or math coprocessor/upgrade processor (1060) if applicable.
Type 1 system board -
Type 2 system board -
Notes:
1. Be certain to reinstall the SIMMs, optional math coprocessor/upgrade processor, video memory, and cache memory on the new system board if applicable.
2. When reinstallinga new system board, push the board to the rear and place it over the front locating pin prior to installing the screws.
3. Run the Setup Utility after changing the system board.

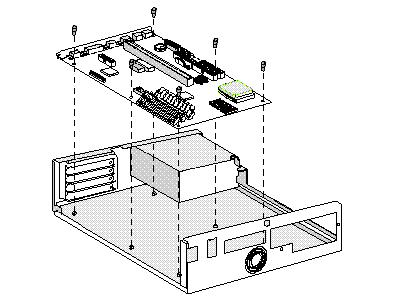

Figure 1-21. System Board
|
