Service Hints & Tips |
Document ID: MNOK-42RKBE |
Aptiva - 2168 (Service Level H/I) System board
Applicable to: World-Wide

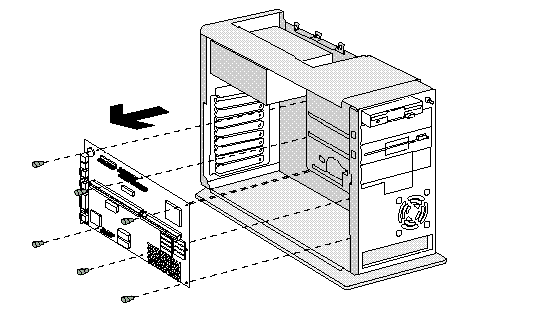

2090 - System Board
- Adapter cards (2035) if applicable -
.
- Riser card (2045) - .
- Disconnect any cables necessary for removal.
- Memory (SIMM) (2050) if applicable - .
- Video memory (2056) if applicable - .
- Cache memory (2055) if applicable - .
- Math coprocessor/upgrade processor (2060) if applicable - .
Notes:
1. Be certain to reinstall the processor, SIMMs, optional math coprocessor/upgrade processor, video memory, and cache memory in the new system board if applicable.
2. When reinstallinga new system board, push the board to the rear and place it over the front locating pin prior to installing the screws.
3. Run the Setup Utility after changing the system board.
|
