Aptiva - 2134/2176 Removals and replacements - Lithium battery on Type 1 system board

35.514 bytes

Service Hints & Tips

Document ID: MNOK-42RPK5

Aptiva - 2134/2176 Removals and replacements - Lithium battery on Type 1 system board

Applicable to: World-Wide

1080ùLithium Battery

For 2134:

Adapter cards (1035) if applicable - .
Left drive support bracket (1010) - .
Riser card (1045) - .

For 2176:

Adapter cards (2035) if applicable - .
Riser card (2045) - .

Insert the tip of a screwdriver (1) under the clip (2) and raise the clip carefully to remove the battery.

Safety Notice 2:
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100›C (212›F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

Attention: Be careful when removing the battery. If the retaining clip is broken, the system board must be replaced.

Note: Run the Setup Utility after installing a battery.

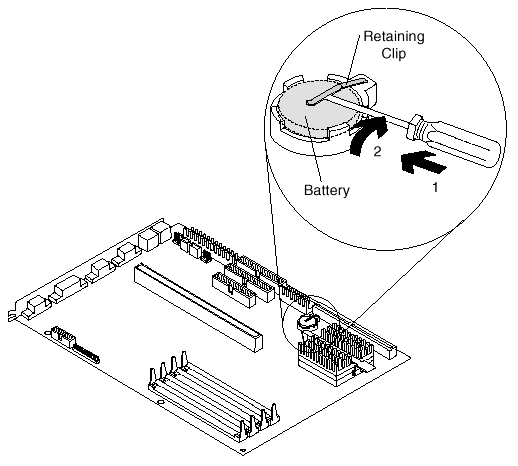

Figure 4-16. Lithium Battery
