Service Hints & Tips |
Document ID: MNOK-42RNCS |
Aptiva - 2134 Removals and replacements - Processor for Type 1 system board
Applicable to: World-Wide
1060ùProcessor RemovalùType A-1
Attention: Processors are sensitive to static discharge. See "Handling ESD-Sensitive Parts" on page 4-38 of the HMM.
To remove the processor, raise the socket lever, remove the old processor, insert the upgrade processor, then lower the socket lever firmly.
When installing, be certain the dot on the processor is aligned with the dot in the socket.
Notes:
1. Determine which type of processor you are installing and make sure the jumpers are set correctly.
2. Run the Setup Utility after installing a processor.

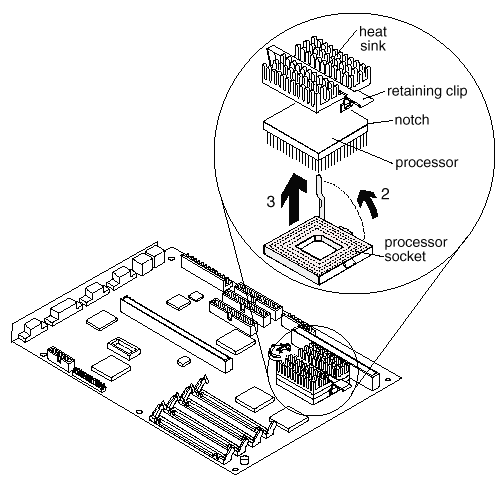

Figure 4-14. Processor Removal - Type A-1
|
