Aptiva - 2134 Removals and replacements - Processor for Type 2 system board
Applicable to: World-Wide
1060ùProcessor RemovalùType A-2
Attention: Processors are sensitive to static discharge. See ôHandling ESD-Sensitive Partsö on page 4-38 -
.
Adapter cards (1035) if applicable - .
Left drive support bracket (1010) - .
Right drive support bracket (1015) - .
To remove the processor: remove the processor retaining clip, raise the socket lever, remove the old processor, insert the upgrade processor, lower the socket lever firmly, then install the processor retaining clip.
When installing, be certain the dot on the processor is aligned with the dot in the socket.
Notes:
1. Determine which type of processor you are installing and make sure the jumpers are set correctly.
2. Run the Setup Utility after installing a processor.

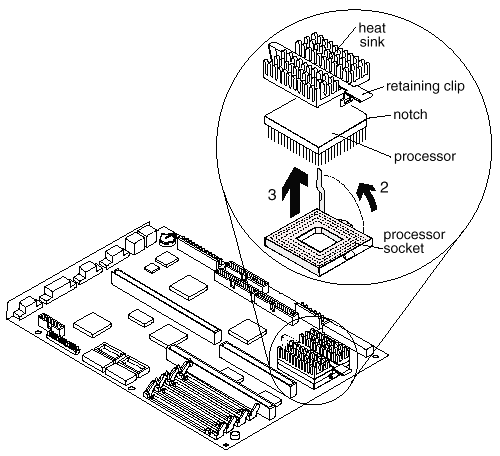

Figure 4-15. Processor Removal - Type A-2
|
