Aptiva - 2144/2168 (Service Level H/I) Lithium battery

23.584 bytes

Service Hints & Tips

Document ID: MNOK-42QSAL

Aptiva - 2144/2168 (Service Level H/I) Lithium battery

Applicable to: World-Wide

1080 / 2080 - Lithium Battery
- Adapter cards (1035 / 2035) if applicable.
2144 -
2168 -
- Left drive support bracket (1010) if applicable - .
- Riser card (1045 / 2045).
2144 -
2168 -

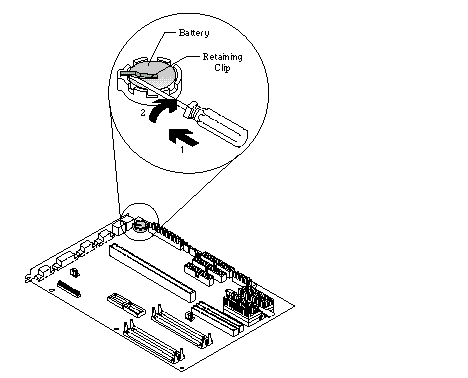

- Insert the tip of a screwdriver under the clip (1) and raise the clip carefully (2) to remove the battery.

Caution:
The lithium battery presents a fire, explosion, or severe burn risk. Do not recharge it, disassemble it, heat it above 100C (212F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations.

Warning:
Be careful when removing the battery. If the retaining clip is broken, the system board must be replaced.

Note:
Run the Setup Utility after installing a battery.

Figure 1-19. Lithium Battery
