Service Hints & Tips

Document ID: BMOE-423R87

TP 1400 - FRU Removals and Replacements

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

FRU Removals and Replacements
This section contains information about removals and replacements.

• Do not damage any parts. Only certified and trained personnel should service the computer.
• The arrows in this section show the direction of movement to remove a FRU, or to turn a screw to release the FRU. The arrows are marked in numeric order, in square callout, to show the correct sequence of removal.
• Any FRUs that must be removed before removing the failing FRU are listed at the top of the page.
• To replace a FRU, reverse the removal procedure and follow any notes that pertain to replacement.

• When replacing a FRU, use the correct screw size, as shown in the procedure.

Attention: The system board is sensitive to, and can be damaged by, electrostatic discharge. Establish personal grounding by touching a ground point with one hand before touching these units.

An electrostatic discharge (ESD) strap (P/N 6405959) must be used to establish personal grounding.

Before FRU Removals and Replacements

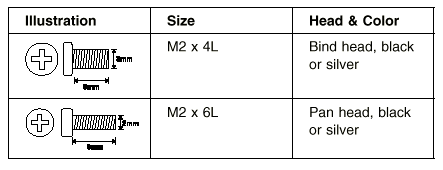

Screw Type Example Explanation

Note: Some screws have nylok paste (on the grooves) for better friction and increased stability.
Some screws have bracket supports.

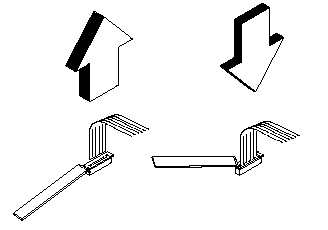

FPC Cable Connector Type

Unplugging the Cable: To unplug the cable, first unlock the connector by pulling up the two clasps on both sides of the connector with a plastic stick. Then carefully pull out the cable from the connector.

Plugging the Cable: To plug the cable back, first make sure that the connector is unlocked, then plug the cable into the connector. With a plastic stick, press the two clasps on both sides of the connector to secure the cable in place.

- Battery Assembly
- DIMM and DIMM Cover
- Modem Board Cover and Modem Board
- Keyboard
- Hard Disk Drive and HDD Heatsink
- Hard Disk Drive
- PCMCIA Holder
- TrackPoint Board
- CPU Heatsink
- CPU EMI Bracket and CPU Board
- RTC Battery (Backup Battery)
- LCD Assembly
- Upper Cover (Keyboard Bezel)
- CD Control Card
- Modem Connector (RJ11 Cable Assembly)
- DC/DC Charger
- Audio Cable and Speaker Cable
- Audio Connector Board
- Fan Assembly
- Audio PCB
- Diskette and CD-ROM Drives Assembly
- Planar Board
- LCD Front Cover
- Speakers
- Inverter
- Indicator Board and Microphone Cable Assembly
- Hinge
- LCD Panel and LCD Cable
